The Installation Guide of Honda HDS V3.017 on Win7

The Installation Guide of Honda HDS V3.017 on Win7

Newest version V3.017 Honda HDS HIM diagnostic tool is affordable and powerful diagnostic tool for Honda. Honda HDS HIM diagnostic tool is with double board and the software no need to activate. Here is the installation of Honda HDS V3.017 on Win7 below:

a.You should install HDS PC V3.017. You should open Honda HDS 3.0174 disk E: and open HIM3.017.012-HDS PC-setup application. You need to prepare setup and click "Next" to start HDS PC V3.017 installation.

You should accept the agreement and select the destination:other(general).
You need to select a language to install: English(below).

b.You should add value and keys to the registration.

You need to come back to E:/HIM3.017.012 folder and merge USA-Dealer.

c. You should install Honda HDS HIM patch.
You need to come back to E:/HIM3.017.012 folder and open HIMHNA application. Then you need to click "Next" to install patch.

d.You need install CM update (ECU Rewrite)6.27.

e.You need to setup COM port.
You should open computer management and select device manager-communications port(COM1).

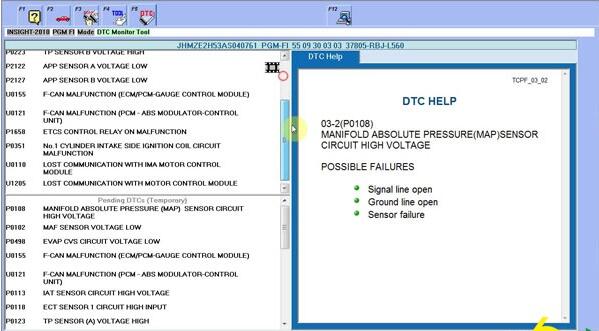

f.You should run HDS V3.017 to read DTCs of Honda insight 2010 and open diagnostic system on desktop.

You should click F12 Setup details.

You need to complete vehicle details.

You should select Honda Systems-PGM-DTCs/Freeze Date.

Honda HDS V3.017 reads DTCs successfully!
