MB SD Connect Compact 4 is a diagnostic tool and support multi-language. As we all know that  MB SD C4 can install battery and wifi card.But how to do? Now follow me as following steps:

1)You should prepare tools like these below:

①SDconnect multiplexer which need to input the batteries.
②6 units Ni-MH Rechargeable batteries,Size:AA, Voltage:1.2V,Capacity:above 1700mA.
③1 unit 108M WIFI Card.
④Plum screwdriver,Specification:T-20

2)You should take out the rubber:
a.You need to use the T20 Plum screwdriver to take out the screws as following picture:

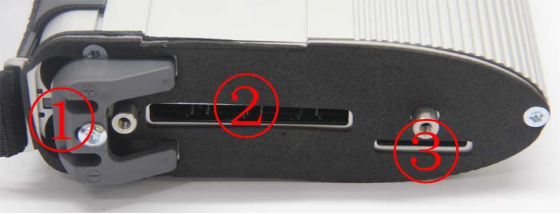

b.You should take out the rubber as below:

①Batteries Space.

②WIFI Card Space.
③SD Card Space.

3)You need to insert the rechargeable batteries.
a.You should use the T20 Plum screwdriver to take out the screws of Batteries Space fixation as following picture:

b.You can take out the fixation of Batteries Space. Pay attention to the Battery polarity marked in the Batteries Space.

c.You should insert the batteries. (Note the Battery polarity)

d.You'd better button on the Fixation of Batteries Space after inputting the Rechargeable batteries.

e.You need to use the T20 Plum screwdriver to fix the screws of Batteries Space fixation as below. And inserting the batteries is finished.

4)Here is the steps of installing WIFI Card for MB SD C4 below:

a. You'd better insert the WIFI Card into the WIFI Card Space. Please make the correct direction.

b.You should push it to make it totally connected.

c.You need to cover the rubber and fix the screws to finish all the work.

The rechargeable battery and Wifi Card for MB SD C4 is successfully installed.
